Hansin HS290

Height: 28m

Floor height: 26.5m

Load: 400kg

Load persons: 3pers.

Rotation: 360°

Basket rotation: Left Right 180

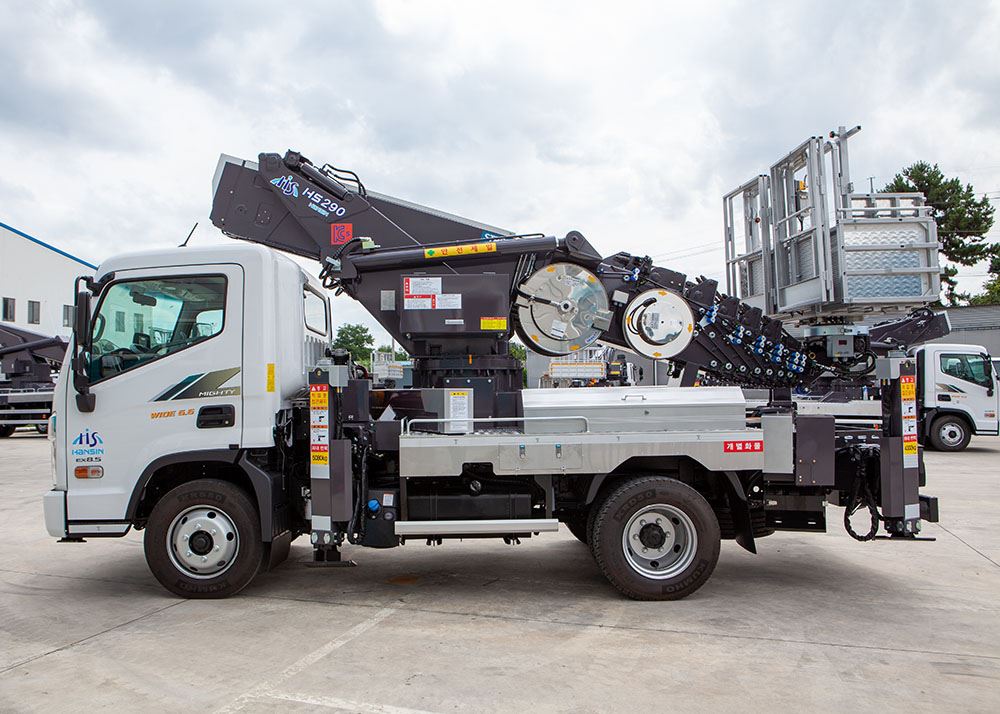

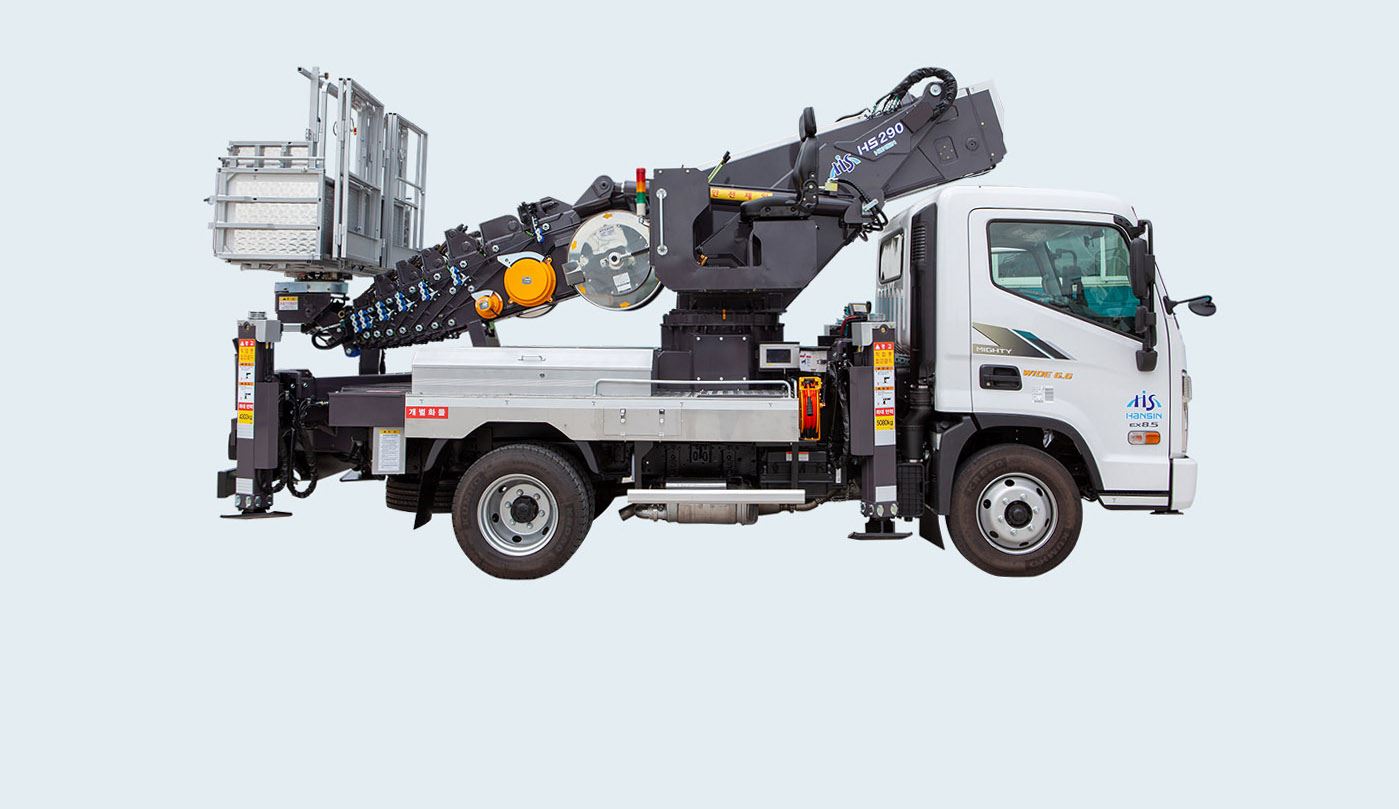

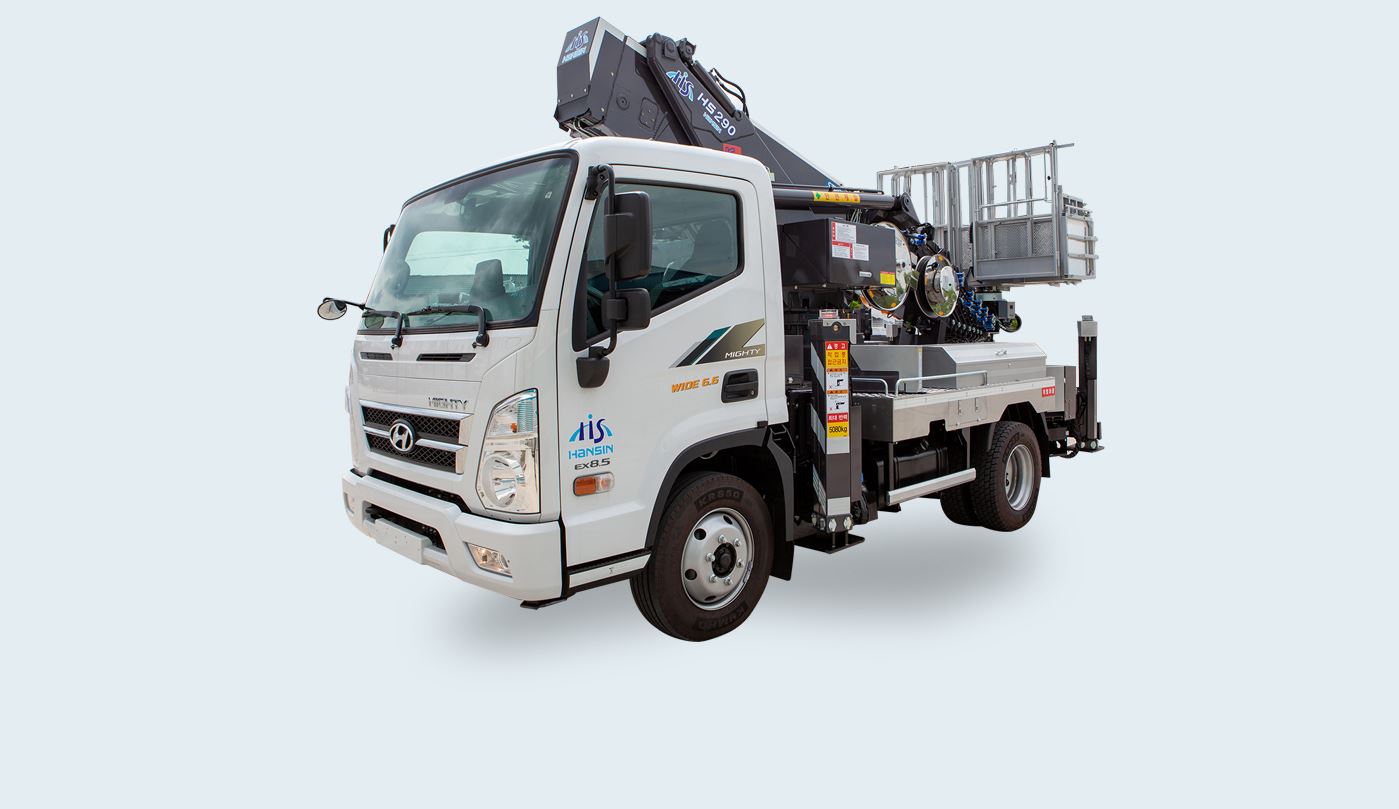

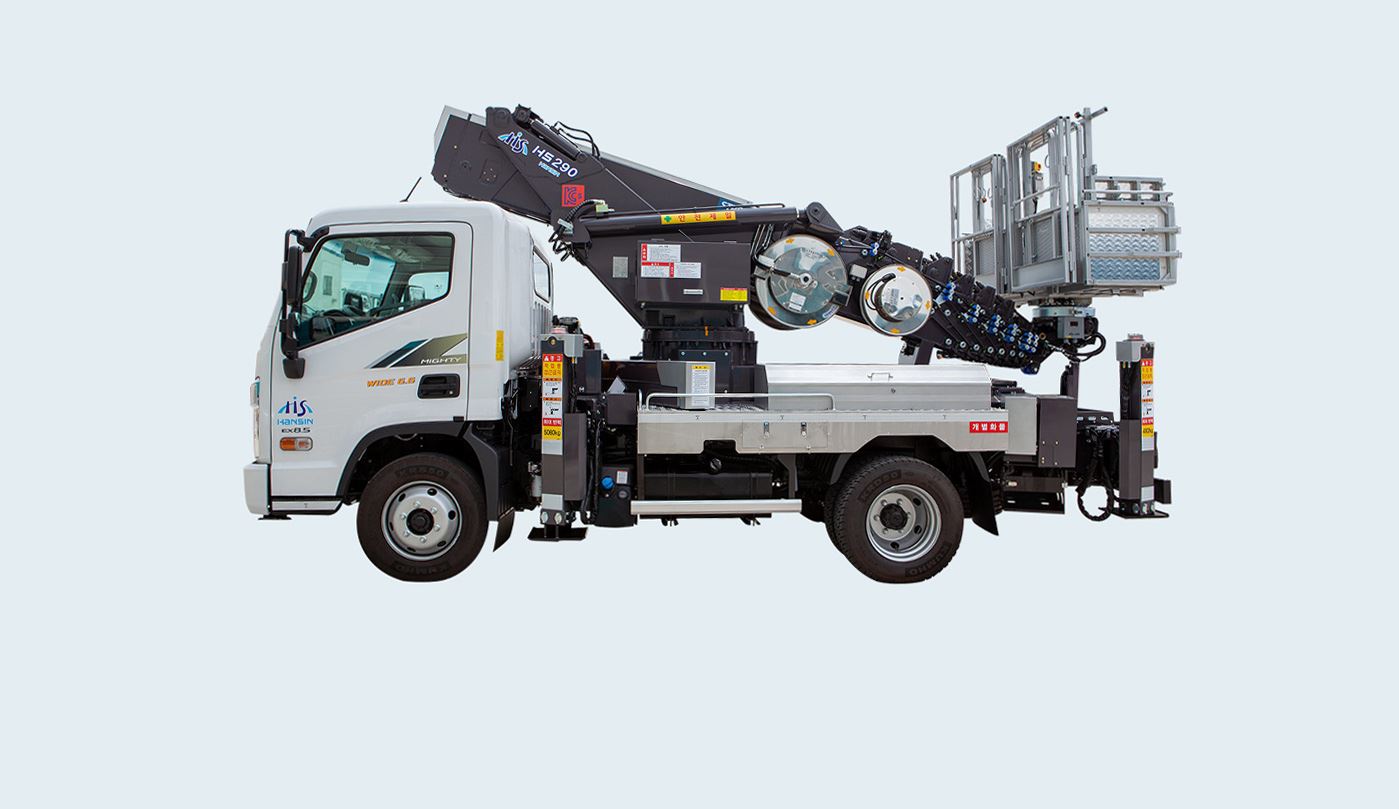

Introducing low height aerial working platform HS 290

Solve your concerns about city work and height/best Performance HS290, which will provide comfort for complex city work based on Hansin Tech

  • Reinforced stability by applying DOMEX 960 steel plate of outrigger material
  • Increased stability to the vehicle by applying a wide-spread chassis
  • Use horizontal LED, bar-type road cell to relieve anxiety when boarding

Technical specifications

Height: 28m

Load: 400kg

Rotation: 360°

Floor height: 26.5m

Load persons: 3pers.

Basket rotation: Left Right 180

Full height: 3080cm

Full length: 5865cm

Full width: 2100cm

Chassis: 4x2, 4x4, 6x2, 6x4, 6x6

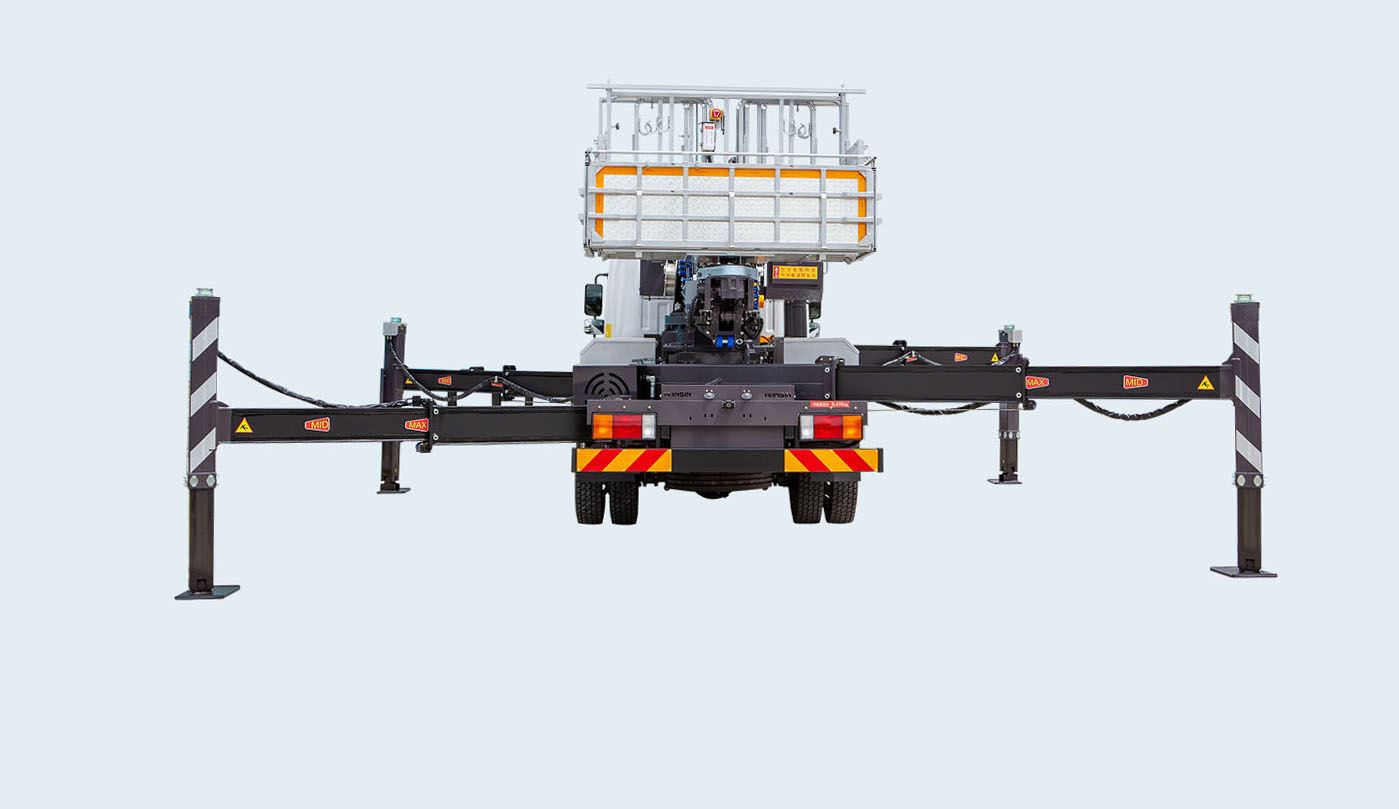

Outriggers: Front : 6150
Back : 6150

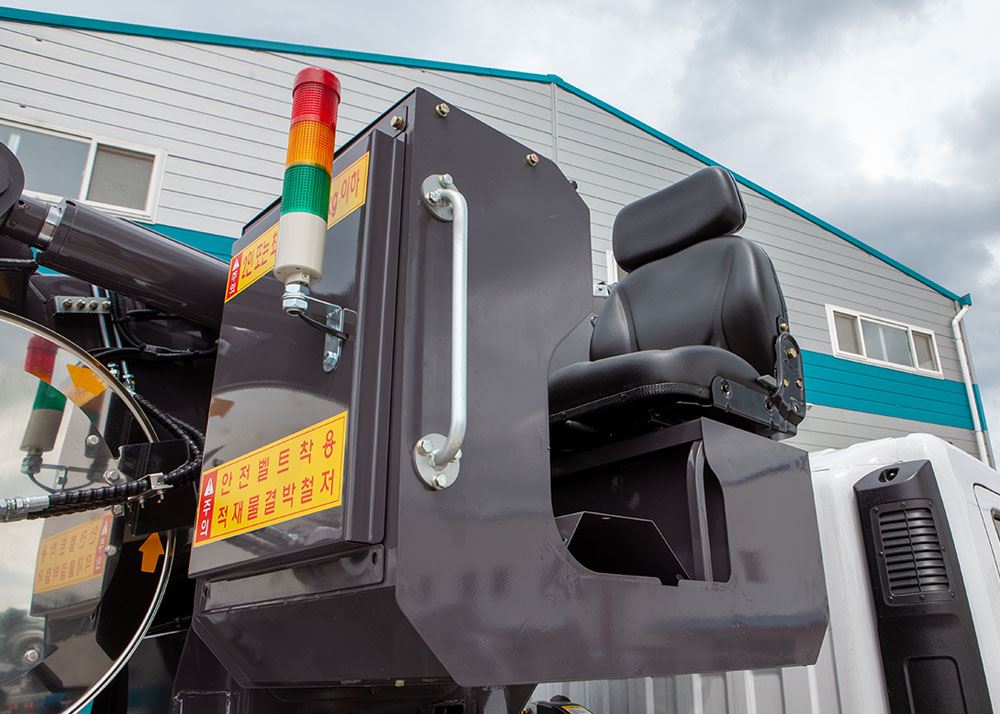

Controls: Remote, In basket

Gross vehicle weight: 8470kg

Safety: AML(Auto Moment Limit) Safety Device, Over Center Valve, Pilot Check Valve, Overload Protective Device, Over winding proof Device

Extras: Remote Ignition ON/OFF Device, Electric Accelerator, Automatic Hydraulic Oil Cooler, Tool Box

+420 775 45 1385
info@hansin.eu

Related Aerial Platforms

Hansin HS400

Height: 40m

Load: 400kg

Rotation: 360°

Floor height: 60.8m

Load persons: 3pers.

Basket rotation: Left Right 180

Basket: 3295 X 1090 X 1100

Full height: 3750cm

Full length: 7640cm

Full width: 2325cm

Chassis: 4x2, 4x4, 6x2, 6x4, 6x6

Gross vehicle weight: 18000kg

More details

Gross vehicle weight: 18000kg

Outriggers: Front : 6990
Back : 7140

Controls: Remote, In basket, In cabin

Winch: Yes

Extras: Night Search Working Light, Remote Ignition ON/OFF Device, Electric Accelerator, Automatic Hydraulic Oil Cooler, Tool Box

Safety: AML(Auto Moment Limit) Safety Device, Over Center Valve, Pilot Check Valve, Overload Protective Device, Over winding proof Device

Get info

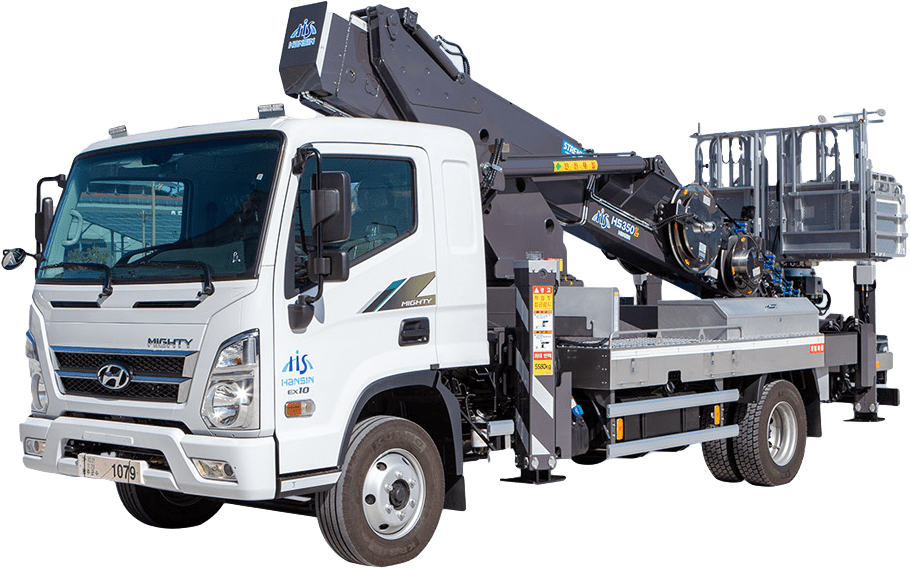

Hansin HS350L

Height: 34m

Load: 400kg

Rotation: 360°

Floor height: 32.1m

Load persons: 3pers.

Basket rotation: Left Right 180

Basket: 3100X1090X1100

Full height: 3120cm

Full length: 7825cm

Full width: 2250cm

Chassis: 4x2, 4x4, 6x2, 6x4

Gross vehicle weight: 10230kg

More details

Gross vehicle weight: 10230kg

Outriggers: "Front : 6530
Back : 6530"

Controls: Remote, In basket

Winch: Yes

Extras: Night Search Working Light, Remote Ignition ON/OFF Device, Electric Accelerator, Automatic Hydraulic Oil Cooler, Tool Box

Safety: AML(Auto Moment Limit) Safety Device, Over Center Valve, Pilot Check Valve, Overload Protective Device, Over winding proof Device

Get info
